Fracturing Units

Big Red Engineering Frac unit is one if not the most dependable unit in the field of Fracturing.

Fracing Unit

Big Red Engineering Fracturing Units are constructed for various applications, site configurations and cost effectiveness. We have the expertise to provide customized designs of Quintuplex or Triplex Frac Units either trailer, bodyload or skid mounted. All standard units are capable of local control, remote control, motoring and data recording. Engine, hydraulic and operational parameters are stored locally and can be accessed, in real time, remotely if needed.

All standard units will be equipped with LED working lights and high pressure iron rated for 15,000 PSI operating pressure. Big Red Engineering’s engineering team strives to accommodate our customer’s specific equipment needs and fleet standardization.

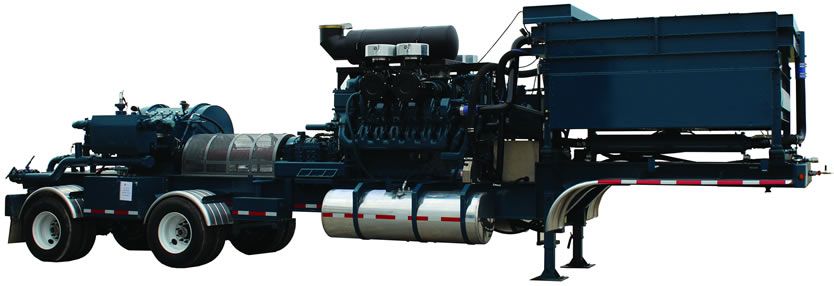

Trailer Mounted Unit

  • Custom built, DOT compliant, trailer
  • Standard 5th Wheel configuration
  • Air Ride Suspension
  • LED lighting
  • Anti-Lock Brake System
  • Horizontal Style Radiator designed for 120° F plus ambient with hydraulic fan

Truck/Chassis Mounted Unit

  • Customized unit designed upon customer’s preferred chassis and engine
  • Horizontal Style Radiator designed for 120° F plus ambient with hydraulic fan

Skid Mounted Unit

  • Adaptable for onshore or offshore environments
  • Crash Frame Designed for Crane and Forklift Servicing

All units feature the following design features and or options:

Engine

  • Caterpillar
  • Detroit Diesel
  • MTU Power
  • Cummins

Controls

  • Compass Instruments
  • Lime Instruments
  • Touch Screen Monitors

System Start Up

  • Hydraulic Tractor Start
  • Power Pack Start
  • Air Start

Transmission

  • Allison
  • Caterpillar
  • Twin Disc Transmission

High Pressure Pumping System

  • Up to 2500 HP Triplex or Quintuplex Pumps
  • Customer’s choice of plunger size

Hydraulic System

  • Sauer-Danfoss
  • Parker
  • Eaton

Pump

  • Jason Oil and Gas
  • FMC Technologies
  • Weir SPM
  • Gardner Denver
  • FET J-MAC

Lubrication System

  • Automatic plunger greasing system or air over oil

Miscellaneous Features

  • Over Pressure Safety
  • Emergency Shutdown
  • Suction Manifold suitable for CO2 service

Big Red Engineering offers both replacement parts and consumables for your well servicing equipment. Call upon or sales staff today for quotes.
